Si5040
5.9. Receiver Phase Adjust
The Si5040 receiver supports programmable sample phase adjust. The sampling point may be advanced or
delayed in time by adjusting the value loaded into the RxPhaseAdjust register (Register 24). The range of
adjustment is ±12 ps.
5.10. Receive Clock Multiplier Unit
The Si5040 receiver incorporates a DSPLL ? -based clock multiplier unit (CMU) that attenuates the jitter on data
recovered from the line interface. This makes it much easier to significantly exceed the jitter requirements for
10 Gbit SONET, Ethernet, and Fibre Channel applications. The CMU is rate-adaptable across the entire range of
device operation. Note that when the ltr bit or ltrOnLOS bit in Register 7 is set to 1, the receive CMU is locked to the
reference clock.
The receiver CMU supports 380 kHz bandwidth (cmuBandwidth[3:0] at Register 6 = 0100).
5.11. Recommended Pre-Emphasis on the RD Signal
Even though the RD signal rise/fall time is very fast, some users may wish to add high-frequency boost to the RD
signal. This is done with an external RC network to reduce low-frequency energy, effectively boosting the high
frequencies. To compensate for loss in the circuit and maintain proper signal size and eye opening at the XFI
connector, the RD amplitude will have to increase to 700 or 800 mV. Register 56 controls the RD signal amplitude.
The resistors and capacitors can be generic low-cost components, and the circuit should be located very close to
the Si5040 RD± pins. This circuit is recommended for all XFP applications.
5040 R D +
20 .5
3 .0 p f
3 .0 p f
274 ?
XFI RD+
.0 1 μ F
274 ?
20 .5
28
5040 R D -

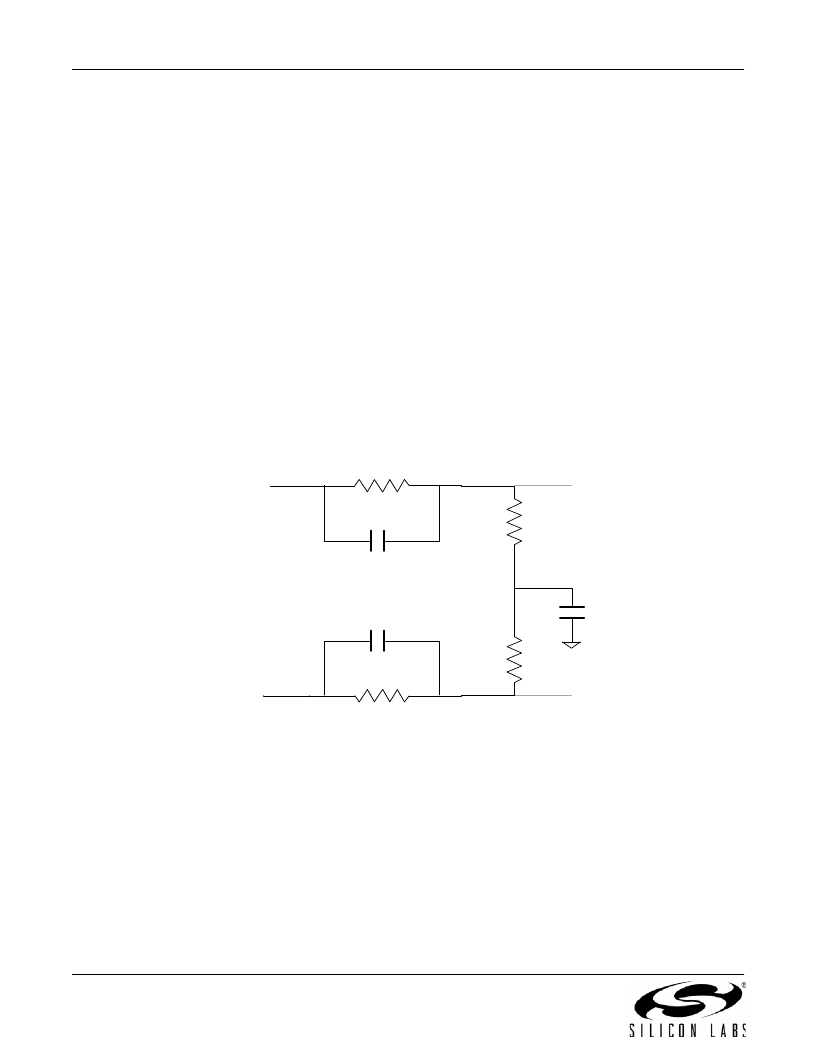

Figure 17. RD Pre-Emphasis Circuit
Rev. 1.3
XFI RD-
